Switches

Micro, rocker, slide, rotary, push-button & reed switches across current, voltage and life-cycle ratings

FILTER

HSR-0025R

Reed Switch

Maximum switching current: 0.01A

Maximum switching voltage: 30VDC

Pull in value: 4-15AT

Minimum breakdown voltage: NA

view>

HSR 134W

Reed Switch

Maximum switching current: 3A

Maximum switching voltage: 120VDC

Pull in value: 60-100AT

Minimum breakdown voltage: NA

view>

WS4

Waterproof Switch

Rated: 5GPA 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 500,000 cycles

Temp: 25T105

view>

MKA-20103

Reed Switch

Maximum switching current: 1.0A

Maximum switching voltage: 250VDC

Pull in value: 20-25AT, 25-50AT

Minimum breakdown voltage: 220VAC, 300VDC, 280VAC, 400VDC

view>

MS9

Micro Switch

Rated: 10(4)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1000,000 cycles

Temp: 40T125

view>

MKA-16101

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 100VDC

Pull in value: 10-50AT

Minimum breakdown voltage: 160VAC, 220VDC

view>

TS-24

Slide Switch

Rated: (T85) 15A 125VAC, (T105μ) 5A250VAC, (T115μ) 8(2)A 250VAC; 15(3)A 125VAC;10(2)A 250VAC

Contact: DP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

MS13

Micro Switch

Rated: 5A 125/250 VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 500,000 cycles(Operating Frequency 60 cycles/min)

Temp: 25T125

view>

KW3A

Micro Switch

Rated: 25(10)A 250VAC

Contact: SPDT, SPST-NC, and SPST-NO

Life: 2,000,000 cycles

Temp: T200

view>

HSR-910W

Reed Switch

Maximum switching current: 3A

Maximum switching voltage: 4000VDC, 5000VDC, 6000VDC

Pull in value: 60-125AT, 100-150AT, 140-170AT

Minimum breakdown voltage: 7000VDC, 10000VDC, 15000VDC

view>

T20

Slide Switch

Rated: (T115μ) 10A 250VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 115℃

view>

ORD324

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 200VDC

Pull in value: 10-40AT

Minimum breakdown voltage: 250VDC

view>

KW4AS

Micro Switch

Rated: 10(3)A 125/250 VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1,000,000 cycles

Temp: 25T125

view>

MG-14

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 100VDC

Pull in value: 8-20AT, 20-35AT

Minimum breakdown voltage: 160VAC, 220VDC, 180VAC, 250VDC

view>

T-18S

Slide Switch

Rated: (T85) 5A125VAC; 2A250VAC; 3A250VAC, (T105) 6RA125VAC; 3RA250VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 85℃

view>

WS1

Waterproof Switch

Rated: 5(2)A 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 1,000,000 cycles

Temp: 40T85

view>

MRPR-20

Reed Switch

Maximum switching current: 1.1A/1.5A

Maximum switching voltage: 265V/250V

Pull in value: 17-43AT

Minimum breakdown voltage:750VAC

view>

KW10

Micro Switch

Rated: 0.1A - 3A 125/250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1,000,000 cycles

Temp: 40T85

view>

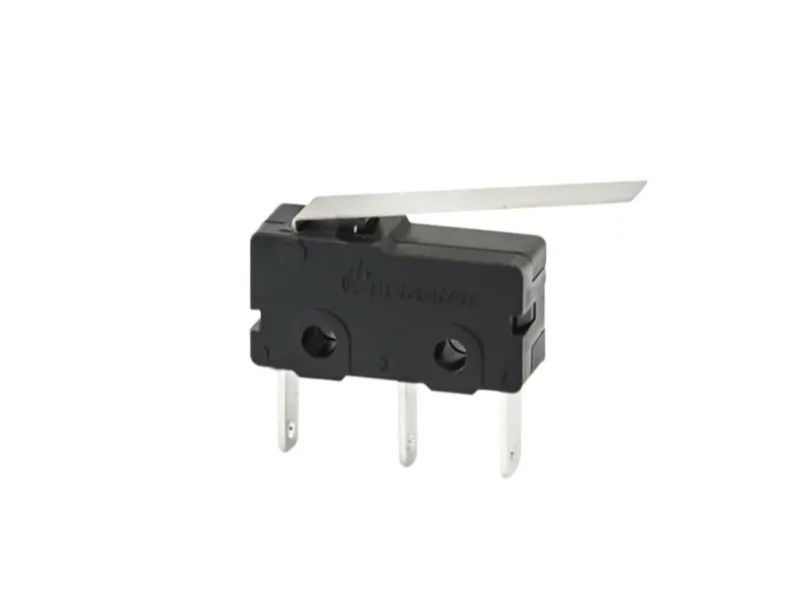

KW4B

Micro Switch

Rated: 10(3)A 1250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1,000,000 cycles

Temp: 25T25

view>

TS-12

Slide Switch

Rated: (T115μ) 16(2)A 125VAC; 8(2)A 250VAC; 10(3)A 250VAC; 16(5)A 125VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 115℃

view>

MKA-20101

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 180VDC

Pull in value: 10-20A, 20-42AT

Minimum breakdown voltage: 160VAC, 220VDC, 200VAC, 280VDC

view>

TS-14-11

Slide Switch

Rated: (T85) 15A 125VAC; 7.5A 250VAC, (T105μ) 15A 125VAC; 7.5A 250VAC; 15(3)A 125 VAC; 10(2)A 250VAC, (T85μ) 8(2)A 250 VAC; 10(2)A 250 VAC

Contact: SP3T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃, 0℃ - 115℃

view>

TS-4C

Slide Switch

Rated: (T105) 16(2)A 125VAC; 8A(2) 250VAC, (T85) 10(3)A 250VAC

Contact: NA

Life: 50,000 cycles

Temp: 0℃ - 85℃

view>

TS-13

Slide Switch

Rated: (T105μ)15A 125VAC; 7.5A 250VAC, (T85μ) 8(2)A 250VAC; 10(2)A 250 VAC, (T115μ)15(3)A 125 VAC; 10(2)A 250VAC

Contact: SP3T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

ORD211

Reed Switch

Maximum switching current: 0.1A

Maximum switching voltage: 24VDC

Pull in value: 10-40AT

Minimum breakdown voltage: NA

view>

KW4A

Micro Switch

Rated: 10(4)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1,000,000 cycles

Temp: 10T85

view>

MDRR-DT

Reed Switch

Maximum switching current: 0.25A

Maximum switching voltage: 175VDC

Pull in value: 15-30AT

Minimum breakdown voltage: 200VDC

view>

TS-4A

Slide Switch

Rated: (T105) 16(2)A 125VAC; 8A(2) 250VAC; 16(2)A 250VAC, (T85) 10(3)A 250VAC

Contact: DP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

WS9

Waterproof Switch

Rated: 1mA/50mA 5VDC / 16VDC

Contact: SPST-NO, SPST-NC

Life: 500,000cycles

Temp: 40T85

view>

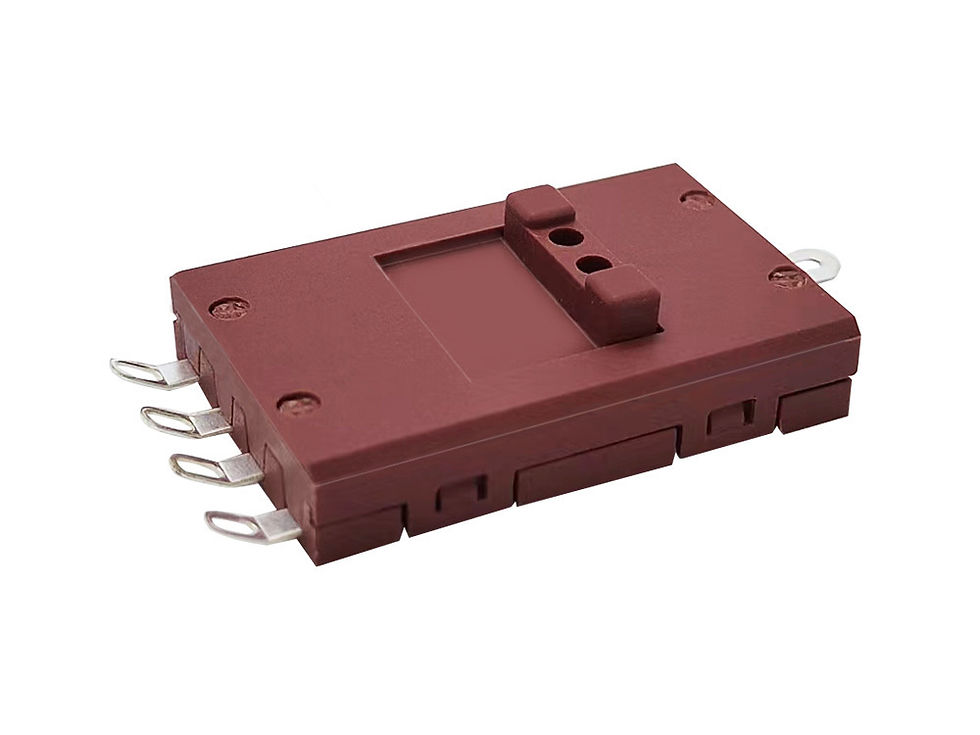

TS-15

Slide Switch

Rated: (T85) 15A125VAC; 8(2)A250VAC, (T105μ) 15A125VAC; 5A250VAC, (T115μ) 15(3)A 125VAC;10(2)A 250VAC, (T85μ) 8(2)A250VAC; 10(2)A250VAC

Contact: SP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

KAM 1

Reed Switch

Maximum switching current: 2A

Maximum switching voltage: 300VDC

Pull in value: 50-120AT

Minimum breakdown voltage: 500VAC/700VDC

view>

HA152

Reed Switch

Maximum switching current: 0.4A

Maximum switching voltage: 200VDC

Pull in value: NA

Minimum breakdown voltage: 400VDC

view>

TS-12S

Slide Switch

Rated: (T115μ) 16(5)A 125VAC; 10(3)A 250VAC; 10(3)A 250VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 115℃

view>

MKA-14103

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 100VDC

Pull in value: 8-35AT, 20-35AT

Minimum breakdown voltage: 160VAC/220VDC @<20AT, 180VAC/250VDC @>20AT

view>

MS3

Micro Switch

Rated: 6(3)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 500,000 cycles

Temp: 25T85

view>

MS6

Micro Switch

Rated: Max 10A 24VDC

Contact: SPDT, SPST-NC, SPST-NO

Life: 500,000 cycles

Temp: 40T85

view>

MKA07101

Reed Switch

Maximum switching current: 0.1A

Maximum switching voltage: 24VDC

Pull in value: 7-35AT

Minimum breakdown voltage:110VAC, 150VDC

view>

MS7

Micro Switch

Rated: 0.1mA /15mA 6VDC

Contact: NA

Life: 500,000 cycles

Temp: 25T85

view>

WS10

Waterproof Switch

Rated: 0.1A 125/250VAC; 0.1A 12/48VDC

Contact: SPDT, SPST-NC, SPST-NO

Life: 100,000 cycles

Temp: 40T85

view>

MK1

Reed Switch

Maximum switching current: 2A

Maximum switching voltage: 300 VDC

Pull in value: 50-120AT

Minimum breakdown voltage:500 VAC, 700VDC

view>

HSR-0035R

Reed Switch

Maximum switching current: 0.05A

Maximum switching voltage: 30VDC

Pull in value: 5-20AT

Minimum breakdown voltage: NA

view>

WS1L

Waterproof Switch

Rated: 5(2)A 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 1,000,000 cycles

Temp: 40T85

view>

MKC-27103

Reed Switch

Maximum switching current: 1A

Maximum switching voltage: 200VDC

Pull in value: 40-90AT

Minimum breakdown voltage: 160VAC / 220VDC AT≤50; 250VAC/350VDC AT>50

view>

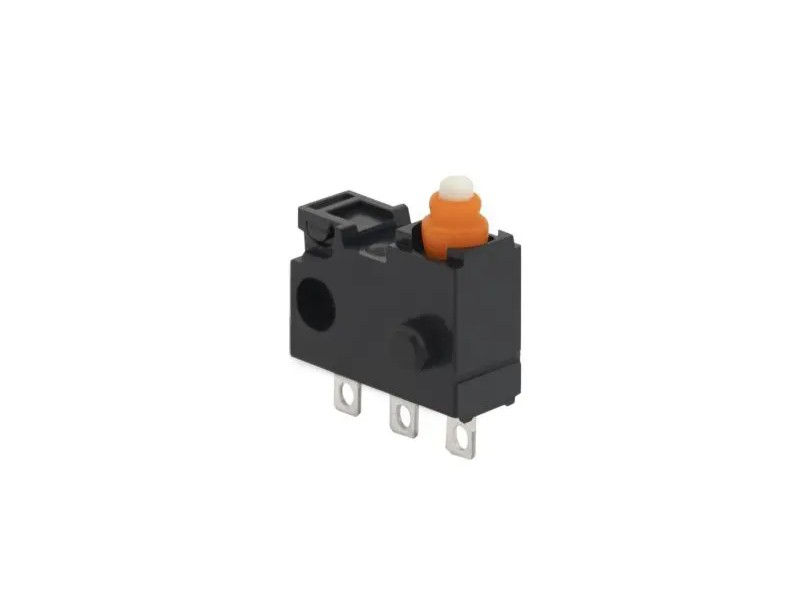

WS6

Waterproof Switch

Rated: 100mA 30VDC

Contact: SPDT, SPST-NC, SPST-NO

Life: ≥ 500,000 cycles(1mADC5V,50mADC16V); ≥ 200,000 cycles(50mADC 30V)

Temp: 40T8

view>

ORD221

Reed Switch

Maximum switching current: 0.3A

Maximum switching voltage: 100VDC

Pull in value: 10-30AT

Minimum breakdown voltage: NA

view>

MKC-17103

Reed Switch

Maximum switching current: 1A

Maximum switching voltage: 127VDC

Pull in value: 30-100AT

Minimum breakdown voltage: 210VDC AT<80; 280VDC AT>80

view>

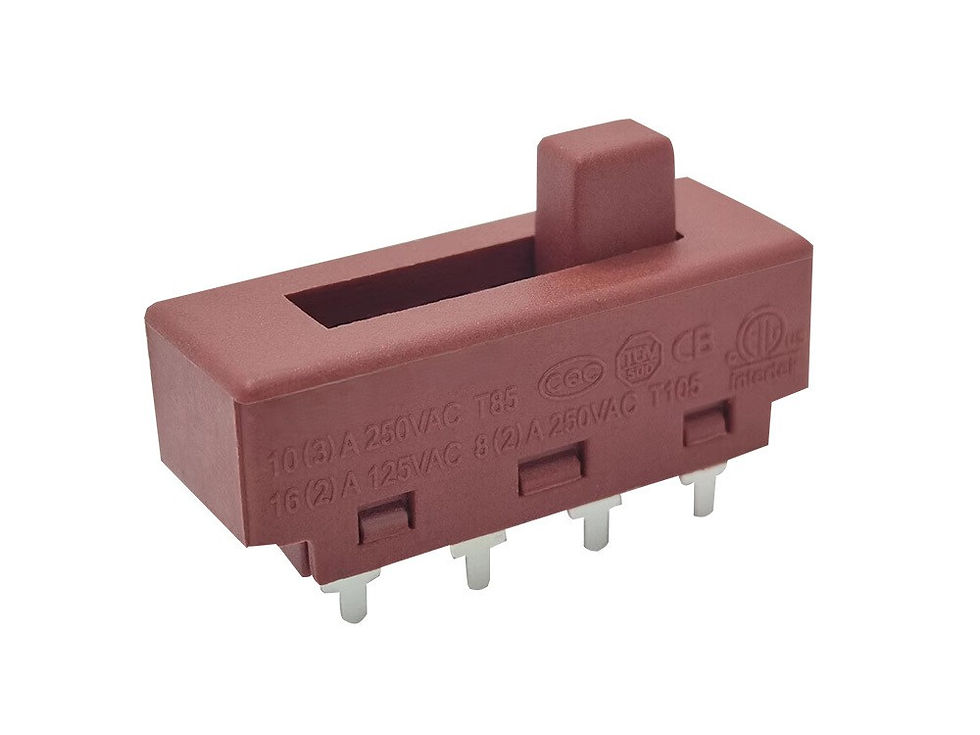

TS-4

Slide Switch

Rated: (T105) 16(2)A 125VAC; 8A(2) 250VAC; 16(2)A 250VAC, (T85) 10(3)A 250VAC

Contact: DP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

HSR-634W

Reed Switch

Maximum switching current: 4A

Maximum switching voltage: 120VDC

Pull in value: 60-100AT

Minimum breakdown voltage: NA

view>

WS8

Waterproof Switch

Rated: 50μA/0.1A 5/12VDC

Contact: SPST-NO, SPST-NC

Life: 300,000 cycles

Temp: -45-+85°C

view>

HSR 834WT

Reed Switch

Maximum switching current: 3A

Maximum switching voltage: 500VDC

Pull in value: 60-100AT

Minimum breakdown voltage: 1000VDC

view>

MKA-50202

Reed Switch

Maximum switching current: 5A

Maximum switching voltage: 250VDC

Pull in value: 40-50AT, 50-100AT

Minimum breakdown voltage:360VAC, 500VDC, 500VAC, 700VDC

view>

WS2

Waterproof Switch

Rated: 10(3)A 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 1,000,000 cycles

Temp: 40T85

view>

FLEX14

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 200VDC

Pull in value: 10-15AT

Minimum breakdown voltage: 250VDC

view>

MKA-10110

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 100VDC

Pull in value: 7-40AT

Minimum breakdown voltage: 110VAC 200VDC

view>

TS-4B

Slide Switch

Rated: (T105) 16(2)A 125VAC; 8A(2) 250VAC, (T85) 10(3)A 250VAC

Contact: NA

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

KW3A-G

Micro Switch

Rated: 25(10)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 2,000,000 cycles

Temp: T200

view>

YSS-20

Slide Switch

Rated: (T105μ) 16(3)A 125VAC; 10(2)A 250VAC, (T85μ) 10(3)A 250VAC; 10(3)A 250VAC, (T115μ) 10A 250VAC; 16(3)A 125VAC

Contact: DP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃; 0℃ - 105℃; 0℃ - 115℃

view>

TS-3

Slide Switch

Rated: (T75) 16A 125VAC; 8A250VAC, (T120) 16(3)A 125VAC; 10(2) 250VAC, (T85) 10(1)A 250 VAC

Contact: SP3T

Life: 50,000 cycles

Temp: 0℃ - 75℃, 0℃ - 85℃, 0℃ - 120℃

view>

TS-5

Slide Switch

Rated: (T85) 4A125/250VAC; 3A125VAC; 3(1)250VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 115℃

view>

TS-2

Slide Switch

Rated: (T75)16A 125VAC; 8A 250VAC, (T120) 16(3)A 125VAC; 10(2)A 250 VAC, (T85) 10A 250VAC

Contact: DPDT

Life: 50,000 cycles

Temp: 0℃ - 75℃, 0℃ - 85℃, 0℃ - 120℃

view>

YSS-19

Slide Switch

Rated: (T55) 2A125VAC; 1A250VAC, (T125μ) 2A125VAC; 1A250VAC

Contact: SPDT

Life: 100,000 cycles

Temp: 0℃ - 85℃

view>

ORD624

Reed Switch

Maximum switching current: 0.5A

Maximum switching voltage: 200VDC

Pull in value: 7-30AT

Minimum breakdown voltage: 200VDC AT≤10; 250VDC AT>10

view>

ORD229

Reed Switch

Maximum switching current: 0.7A

Maximum switching voltage: 350VAC/DC

Pull in value: 15-60AT

Minimum breakdown voltage: 600VDC

view>

MS1

Micro Switch

Rated: 16(4)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 2,000,000 cycles

Temp: 40T125

view>

MKA-50202

Reed Switch

Maximum switching current: 5A

Maximum switching voltage: 250VDC

Pull in value: 40-50AT, 50-100AT

Minimum breakdown voltage:360VAC, 500VDC, 500VAC, 700VDC

view>

WS7

Waterproof Switch

Rated: 10(4)A 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 1,000,000 cycles

Temp: 25T125 (Environment Temp: -40~+85°C)

view>

MRPR 3

Reed Switch

Maximum switching current: 1.5A

Maximum switching voltage: 300VDC

Pull in value: 22-28AT

Minimum breakdown voltage: 300VDC

view>

MS10

Micro Switch

Rated: 16(4)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 1000,000 cycles

Temp: 25T105 (Environment Temperature: -40~+125ºC)

view>

Miti 7

Reed Switch

Maximum switching current: 0.25A

Maximum switching voltage: 170VDC

Pull in value: 10-15AT

Minimum breakdown voltage: 175 VDC

view>

WS5

Waterproof Switch

Rated: 3A 12VDC

Contact: SPDT, SPST-NO, SPST-NC

Life: 500,000 cycles

Temp: 40T130

view>

T19

Slide Switch

Rated: (T105) 5(1)A125VAC; 3(1)A 250VAC; 3(1)250VAC

Contact: SPDT

Life: 50,000 cycles

Temp: 0℃ - 105℃

view>

WS3

Waterproof Switch

Rated: 2GPA 250VAC

Contact: SPDT, SPST-NO, SPST-NC

Life: 100,000 cycles

Temp: 40T85

view>

HSR-916W

Reed Switch

Maximum switching current: 3A

Maximum switching voltage: 4,000VDC, 5,000VDC, 6,000VDC

Pull in value: 60-125AT, 100-150AT, 140-160AT

Minimum breakdown voltage: 7,000VDC, 10,000VDC, 15,000VDC

view>

MKA-07101

Reed Switch

Maximum switching current: 0.1A

Maximum switching voltage: 24VDC

Pull in value: 7-35AT

Minimum breakdown voltage:110VAC, 150VDC

view>

ORD611

Reed Switch

Maximum switching current: 0.3A

Maximum switching voltage: 200VDC

Pull in value: 8-40AT

Minimum breakdown voltage: NA

view>

MS12

Micro Switch

Rated: 50 - 500MA 30VDC

Contact: SPDT, SPST-NC, SPST-NO

Life: 50,000 cycles

Temp: -25ºC to + 85ºC at ambient humidity of 60% max.(With no icing or condensation); +5ºC to + 35ºC at ambient of humidity: 35% to 85% RH

view>

YSS-18

Slide Switch

Rated: (T75) 3A 125VAC; 1.5A 250VAC; 10A 125VAC; 5A 250VAC (T105) 10(2)A 125VAC; 5(2)A 250VAC

Contact: SPDT

Life: 100,000 cycles

Temp: 0℃ - 75℃

view>

ORD213

Reed Switch

Maximum switching current: 0.1A

Maximum switching voltage: 24VDC

Pull in value: 10-40AT

Minimum breakdown voltage: NA

view>

MS2

Micro Switch

Rated: 5(2)A 250VAC

Contact: SPDT, SPST-NC, SPST-NO

Life: 500,000 cycles

Temp: 25T100

view>

TS-14

Slide Switch

Rated: (T85) 15A 125VAC; 5A250VAC, (T85μ) 8(2)A 250VAC, (T115μ) 10(2)A 250VAC

Contact: SP4T

Life: 50,000 cycles

Temp: 0℃ - 85℃, 0℃ - 105℃

view>

MS5

Micro Switch

Rated: 3A/6A/10A 12VDC

Contact: SPDT, SPST-NC, SPST-NO

Life: 100,000 cycles

Temp: 40T85

view>

YSS-16

Slide Switch

Rated: (T75) 13A 125VAC; 6.5A 250VAC; 16A 125VAC; 8A 250VAC (T105) 16(3)A 125VAC; 8(2)A 250VAC

Contact: SP3T

Life: 50,000 cycles

Temp: 0℃ - 75℃

view>
