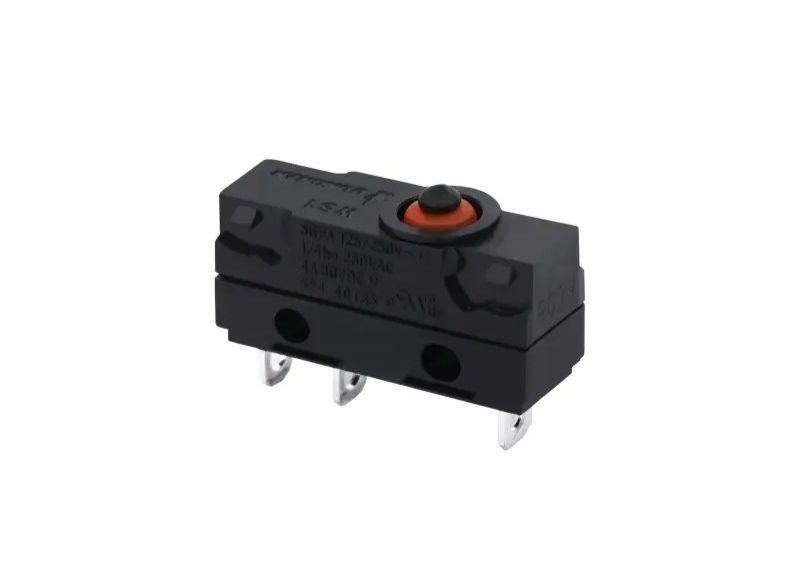

Waterproof Switch
WS1L
Refrigerator Snap Action Waterproof Micro Switch Factory Direct Sales
◆ APPLICATIONS
Use in coffee machine for checking the availability of grinding appliance
— FULL SPECIFICATION
Technical data
Electrical
Rated Voltage/Current
5(2)A 250VAC
Contact Configuration
SPDT
SPST-NO
SPST-NC
Electrical Life
50,000 cycles
Max Switching Current
Max Switching Voltage
Pull-in Value
Min Breakdown Voltage
Mechanical
Overall Dimensions (LxWxH)
20*10.4*6.4
Actuator Type
No lever
Short lever
Long lever
Middle lever
Short roller lever
Long roller lever
Arc lever
Terminal Type
Solder terminal
PCB terminal
Left side PCB terminal
Right side PCB terminal
110 quick-connect
Not standard terminal
wire type
Travel Distance
Mechanical Life Cycle
1,000,000 cycles
Operate Time
Release Time
Environmental
Operating Temperature
40T85
IP Rating
rv
Certifications
Certifications
UL ,CUL ,ENEC ,DEMKO
