SWITCH TECHNOLOGY (S) PTE LTD

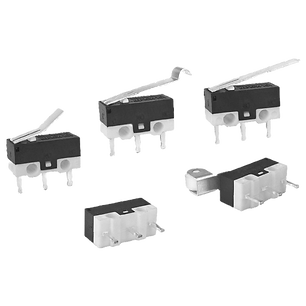

KW10
Action sensitive subminiature switch
1. Mini-type, big current
2. small contact gap
3. quick action
4. high sensitivity
5. small operaing travel.
6. Long life.
Item | Description |
|---|---|
Operating Speed | 1mm ~500mm/s |
Operating Frequency | Mechanical 60 cycles/min;
Electrical 25 cycles/min |
Insulation Resistance | ≥100M & (500VDC) |
Contact Resistance | OF ≤ 30/50/100mΩ depending on model
|
Test Voltage | Between terminals of the same polarity: AC600V, 50/60Hz, 1min
Between current- carrying metal parts and ground, and between each terminal and non current carrying metal parts: AC1000V, 50/60Hz, 1 min |
Vibration Resistance | 10 ~55Hz, 1.5mm (double amplitude) |
Shock Resistance | Malfunction: 300m/s² (approx. 30G) max |
Life Span | Mechanical ≥ 1,000,000 cycles;
Electrical ≥ 1,000,000 cycles |
Weight | Approx. 0.6g (no lever) |
Safety Approvals | UL, CUL, TUV, ENEC, DEMKO, CE, EK, CQC |
